| Dynojet Power Commander
Accessories
Fuel Moto carries
all of the latest Power Commander USB accessories at the
best prices in the USA. We also provide technical support to
ensure you get the right components and get them set up
properly. For immediate pricing and information call
Fuel Moto at 877-729-4754
or email
jamie@fuelmotousa.com
Auto Tune module for PC-V
New for the PC V is
the available add-on Auto Tune module which allows for live,
closed loop EFI tuning. Based closely on Dynojet's new
Wideband Commander 2 it features a OEM quality Bosch
Wideband O2 sensor. The Auto tune module allows users set a
demanded air/fuel ratio in the PC V software and the Auto
tune will make adjustments in real time. When enabled there
is an AFR table with the same 250 RPM increment resolution
as the fuel table. The Auto tune can be configured for
minimum run time before live sample as well as maximum +/-
fuel adjustments in relation to the base map. The Auto Tune
kit can also use the Dynojet map switch or any open/closed
switch which allows the user to switch between live tuning
to the parameters set thru the PC V software or the base map
in the PC V unit. You can leave the map switch in "live"
mode, or if you want to write the fuel map you can connect
to the PC V software, retrieve the fuel trims and either
write them to the map or clear them. The firmware and tuning
strategy has been well written and in our testing we have
been able to develop very, very accurate maps using the Auto
Tune module opposed to some of the other Auto tune units on
the market we have tested in the past. We have also compared
several Auto Tune derived maps to dyno tuned maps and the
results were impressive. The Auto Tune module requirea some
basic wiring from the sensor harness into the modules. The
Auto Tune module is a very good choice for those with a
unique mods, where a dyno is not available, or for those
looking for the ability to tune in real time.
Auto Tune AT-100 with Dual Wideband
sensors for Harley V Twin models
Auto Tune AT-200 single Wideband kit for
Japanese and Euro models
Complete AT-100 kit

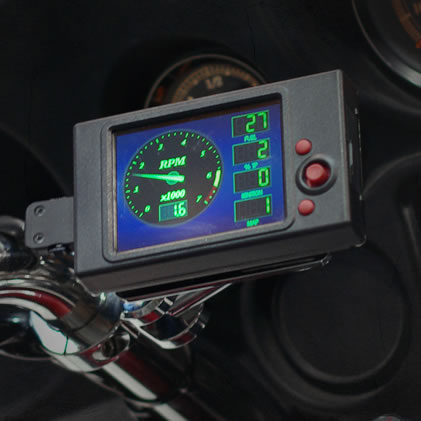

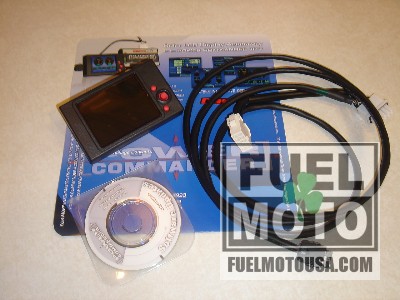

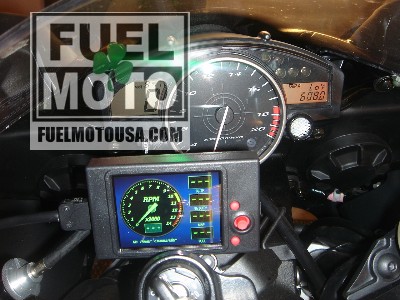

LCD Display for Power
Commander
LCD 200 for PC-V
LCD 100 for PC III USB
Display and
data log Power Commander data in "real time"
On
PC-V equipped Harley models the LCD-200 allows you to
configure, view and log PC-V data as well as the Delphi
ECM's J1850 data channels such as engine temp, ignition
timing, Manifold pressure, etc..
View AFR in real time on PC-V/Auto Tune equipped
models
Allows storage & switching
between multiple maps
Data logging capable (SD memory card not included)
Logs are easily downloaded into an Excel spreadsheet
On Screen" map adjustments
User configurable screens
USB programmable & upgradable
Active matrix TFT LCD 240 X 320 16bit color screen
 Dynojet
Quick Shifter
This is one product that must truly be seen
to believe. The Quickshifter allows for full throttle,
clutchless upshifts. It works by cutting the signal to the
fuel injectors or ignition depending on the application
during the upshift, for a fast, reliable shift on the power.
Injector delay time and minimum shift RPM is fully
adjustable. We even have great baseline settings. The
Quickshifter is available for most bikes that are equipped
with a Power Commander. There are several different kits
based on your bike model.
Available for most PC-V and PC III USB Equipped bikes
NEW LOWER PRICING!
Secondary Fuel module for
PC-V
The Secondary Fuel
Module connects to the upper injector rail using
OEM connectors. It requires only a single cable
connection to the PCV. Once connected, you will be able
to adjust both upper and lower injectors by as much as
+250/-100%. If the gear position input is
connected on your PCV you have the ability to adjust all
of the injectors on a “per gear” basis (a complete map
for every gear) as well as the ability to map each
injector separately.

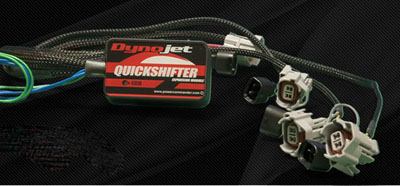

Quickshifter
Expansion module for PC-V
The QEM
allows the Dynojet Quick Shifter sensor to be used with the
Power Commander V on bikes that have 8 INJECTORS. The QEM
connects to the upper injectors and then into the PCV. Once
the sensor is attached you will have full Quick Shifter
functionality at the LOWEST COST POSSIBLE!
Dynojet Ignition Module
for PC III USB
The Ignition Module for
the PCIII USB plugs into the expansion port on the Power
Commander and to the OEM ignition harness and allows for
ignition timing advance/retard adjustments of up to 10
degrees. You can also change the timing on individual
cylinders. On several models there is also a Rev Xtend which
allows the user the raise the stock rev limiter.
|
