Dynojet Power Commander V


 For Power Commander V click the links above

Fuel Moto offers 100% product support on the new Dynojet Power Commander V. We will continue to build on our map database and we will have fuel maps for most popular combinations. For those of you with unique engine builds and exhaust setups, or are looking for live tuning the PC V will offers the optional Auto Tune module with wideband O2 sensor (dual sensors on Harley /V Twin models) which will allow you to tune in real time. We have extensively tested this product, for more info contact us at 877-729-4754

NEW Power Commander V Basic Features List
• Reduced size from PCIIIusb (less than half of the size of PCIII)
• USB powered from computer (9 volt adapter is no longer needed for programming)
• 2 position map switching function built in (map switch not included)
• Gear/Speed input (allows for map adjustment based on gear and speed)
• Analog input (allows user to install any 0-5 volt sensor and build an adjustment table based on its input such as boost or temperature)
• With gear position input connected the PCV is capable of allowing each cylinder to be mapped individually and for each gear (for example: on a 4 cylinder bike with a six speed transmission there could be up to 24 separate fuel tables).
• Unit has a -100/+250% fuel change range (up from -100/+100%). This allows more adjustment range for 8 injector sportbikes
• 10 throttle position columns (up from 9 on PCIIIusb)
• Enhanced “accel pump” utility (increased adjustment and sensitivity ranges)

Harley Davidson Units Also Include:
• Fuel and Timing control
• Rev Xtend
• “Warm Up” fuel adjustment (unit reads engine temp and allows fuel/timing adjustments based on it)
• Software will display J1850 data from bikes’ stock ECU (this is data such as temp, fuel pulse width, timing advance, spark knock, etc.)

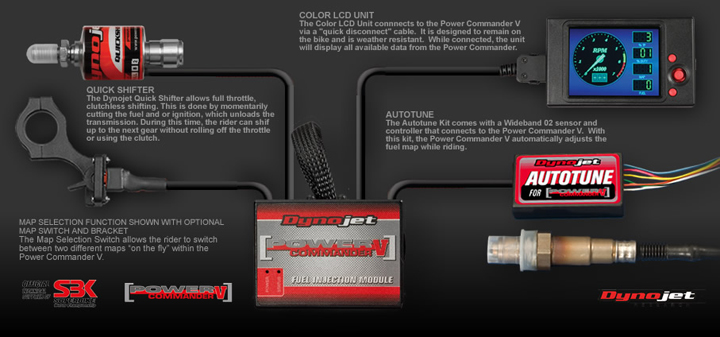

Auto Tune for PCV (all models)
• “Auto Tune” kit will be available that includes Wide Band O2 sensor(s) and control box(es). It will plug directly into the PCV and allow automatic fuel adjustments.
• It can make a map for each gear and on a Harley Davidson models it can map each cylinder separately for each gear if needed. (basic settings would make one map for all gears)
• Each map cell is individually adjustable so you can specify an exact AFR value for each area if needed.
