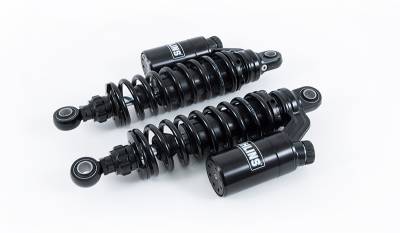

Ohlins S36PR1C1L Blackline Series Rear Suspension - Dyna FXD Models

Don’t let the subtle styling fool you! The STX 36 P Blackline shock absorbers deliver well known Ohlins damping performance and quality. With a selection of spring rates, compression, rebound and preload adjustment you can fine tune these shocks to suit your riding style. From cruising mountain roads to being playful on the throttle the STX 36 P Blackline shocks are developed for Harley-Davidson riders wanting nothing but perfect ride characteristics

• STX-technology
• Piggyback gas pressurized reservoir
• Adjustable compression and rebound damping
• Optional length adjustability
• Fully serviceable
• Tested and tailor-made to suit each application

Shock Absorbers Type Code Breakdown

S36PR1C1L

S - Single Tube Design
36 - Piston Diameter (mm)
P - Montotube high pressure gas type with external "piggy back" reservoir
R1 - Adjustable rebound damping. Adjuster wheel on end-eye
C1 - Adjustable compression damping. Adjuster on reservoir
L - Adjustable length
